Double beam overhead crane

  • LH model double beam overhead crane

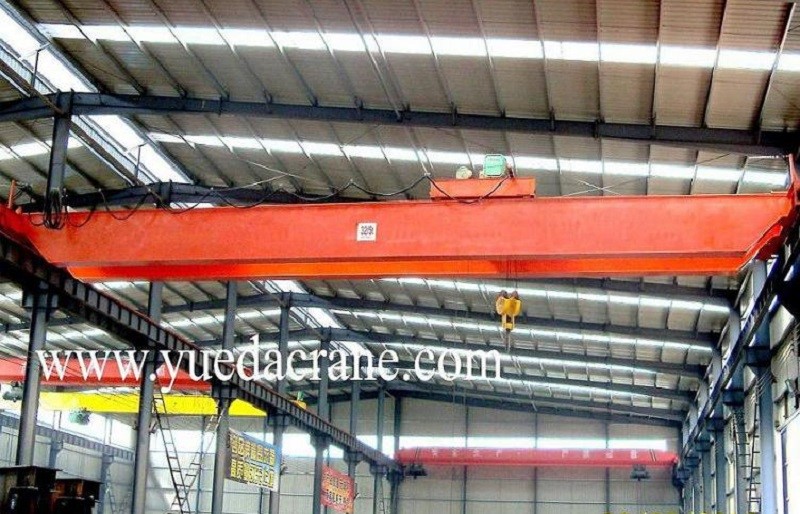

LH model double beam overhead crane

LH model double beam overhead crane

  • Lifting capacity: 3T~50T
  • Span: 7.5m~35m
  • Lifting height: 6m~30m
  • Duty class: A3~A4
  • Product description: LH model double beam overhead crane with wire rope electric hoist
  • INQUIRY

LH model electric hoist type double girder overhead crane is traveling on fixed support, The frame adopts box-type welding mechanism, and it used together with CD1 or MD1 model wire rope electric hoist as a complete set, It is an mid-duty class crane, the capacity from 5 tons to 50 tons. The span is 7.5-35m. working grade is A3~A4. Working temperature is -20 to +45 centigrade.
This overhead crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive to corrosives environment.
The control models are pendant pushbutton control, wireless remote control and cabin control for choice.

The frame of LH model double beam overhead crane:
LH model double beam overhead crane
The general drawing of double beam overhead crane:

LH model double beam overhead crane

The technical table of this double beam overhead crane:

The general details of electric hoist overhead crane

Span(rail to rail center)

7.5m~35m

Lifting height

6m,9m,12mor other height

Capacity

5t

10t

15t, 16t

20t, 25t

30t, 32t

40t, 50t

Lifting speed(m/min)

8, 8/0.8

7/0.7

3.5,

3.5/0.35

4, 4/0.4

3, 3/0.3

2, 2/0.2

Cross travelling speed(m/min)

10, 20

10, 20

10, 20

10, 20

10, 20

10, 20

Long travelling speed(m/min)

20, 30

20, 30

20, 30

20, 30

20, 30

20, 30

Duty Class

A3/A4

Power source

380V, 50HZ, 3 phase (or other standard)

Working temperature

-20~40

Control model

Pendant pushbutton control, cabin control or remote control
